VTT N55/S55 “Spline Lock” Crank Hub Solution

VTT “Spline Lock” Crank Hub System – N55 / S55

VTT is proud to offer the only complete crank hub solution for BMW N54, N55, and S55 engines that does not require drilling the crankshaft for pins.

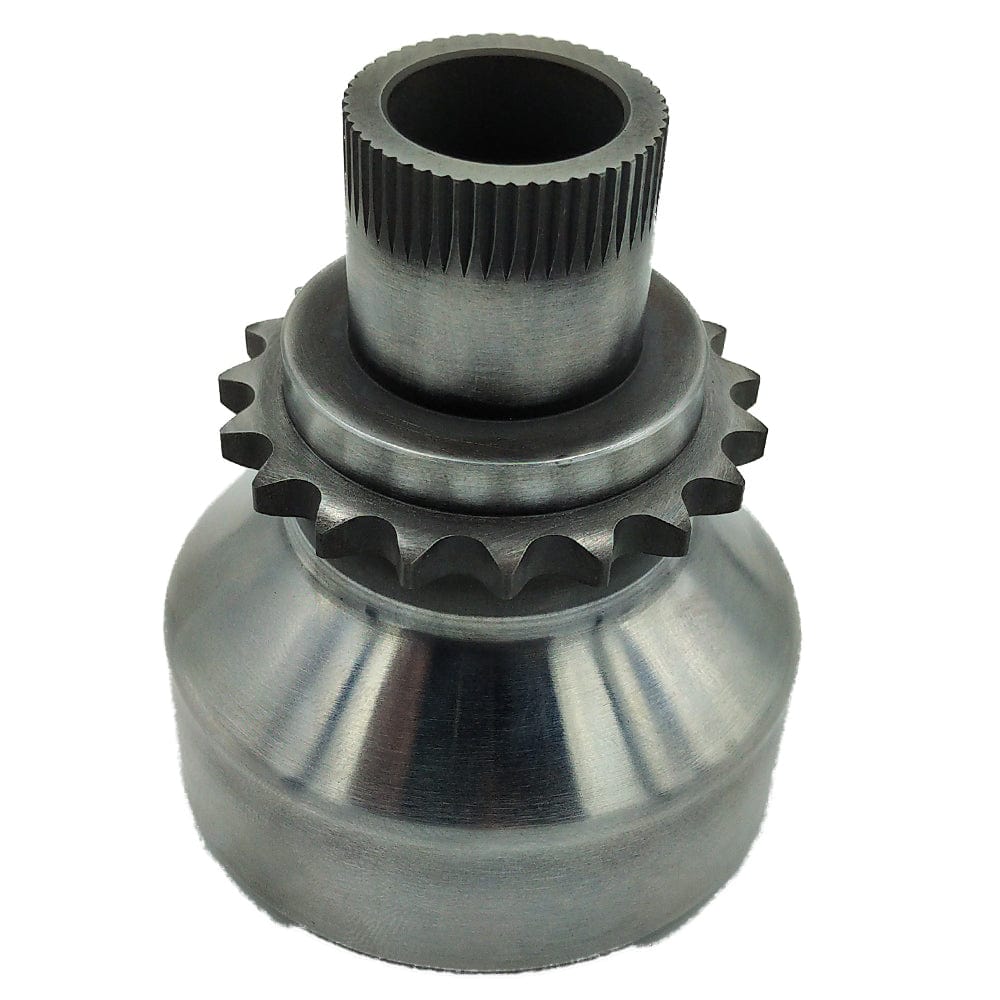

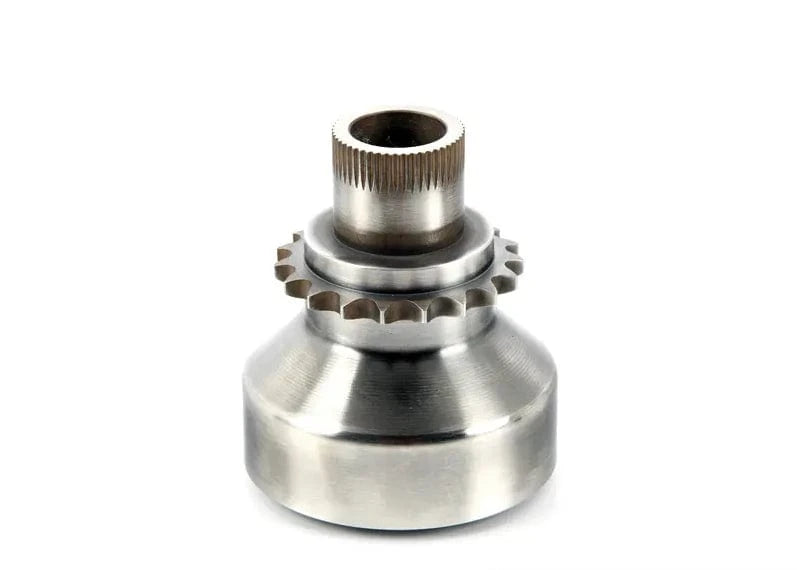

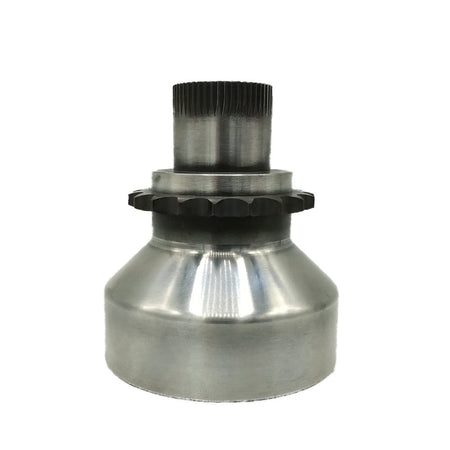

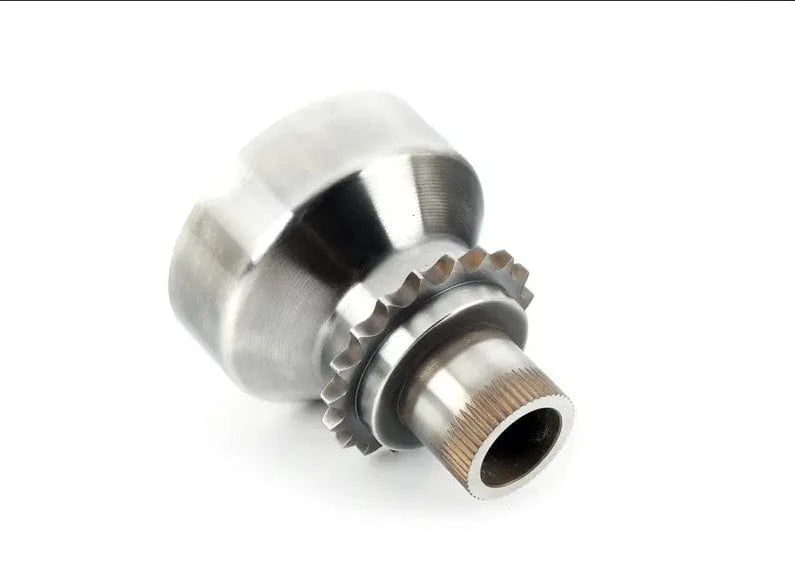

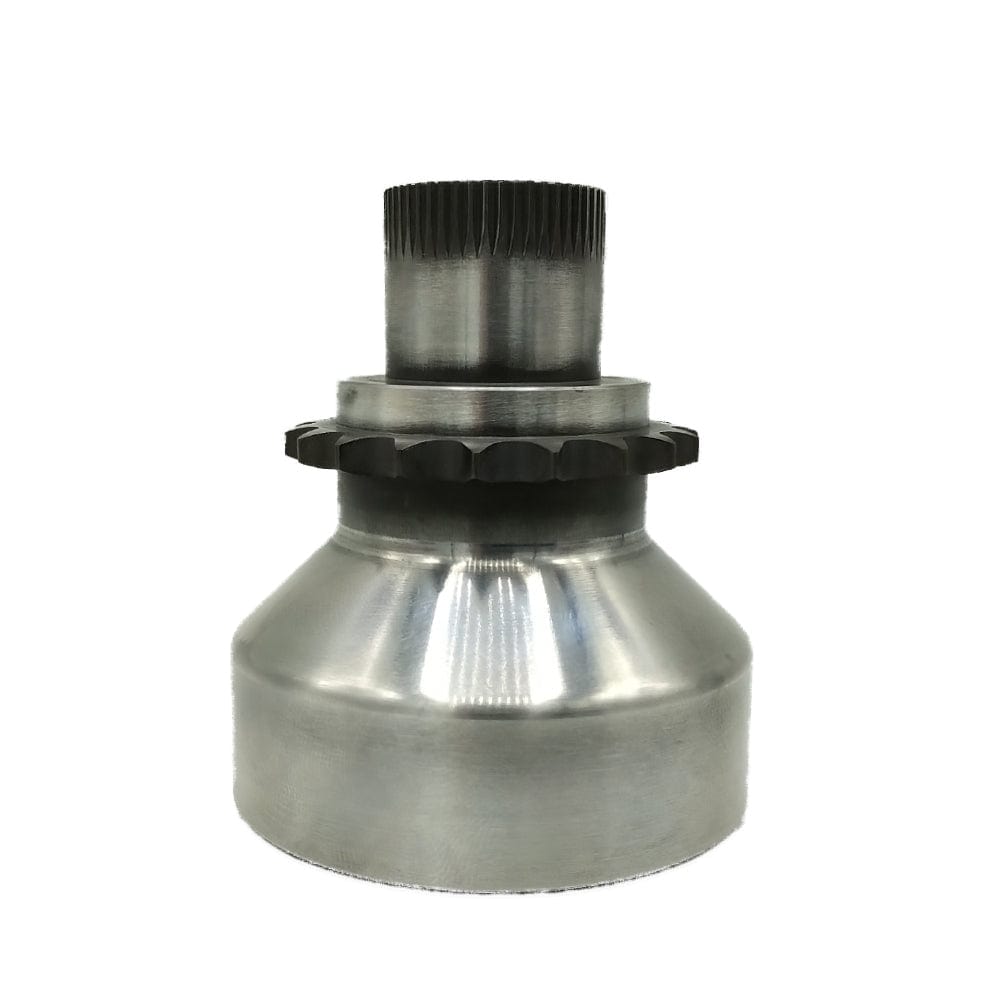

Our innovative hub features proprietary Spline Lock Technology—a high-tolerance, precision-machined spline system that presses into the crank and positively locks the hub in place, eliminating the need for traditional pinning or welding.

After months of rigorous development and over 10 different prototype revisions, our final production version was put to the test. In our in-house trials, the hub outperformed expectations—breaking our testing rig before it ever slipped. Real-world validation has been conducted on the VTT N54 race car, which spins to 8,000 RPM and produces over 900 WHP.

Key Benefits:

• No crank drilling required – stock-like installation

• Minimal labor – fully reversible with no permanent modification

• Tested to extreme conditions – race-proven at high RPM and power

• Exclusively compatible with VTT’s Crank Bolt Capture (CBC) for maximum security

 Spline Lock hubs are recommended be used with the VTT Crank Bolt Capture system. They are not intended to run independently.

Material & Construction

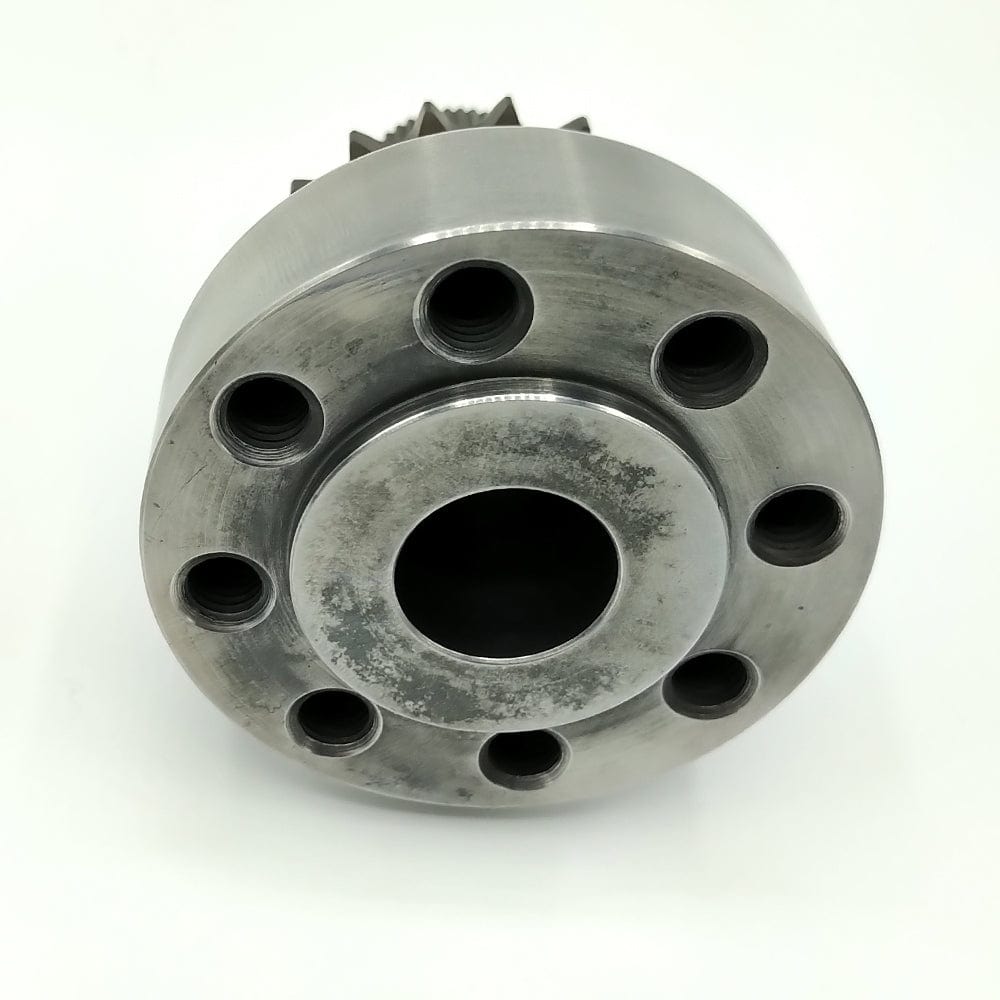

Each VTT Spline Lock Crank Hub is CNC-machined from 440C tool steel, heat-treated to a Rockwell hardness of HRC60, ensuring unmatched strength and durability under extreme conditions.

Available Configurations:

1. Hub Only

2. Hub + VTT Crank Bolt Capture

3. Hub + OEM Bolt, OEM Oil Pump Sprocket, OEM Oil Sprocket Retainer

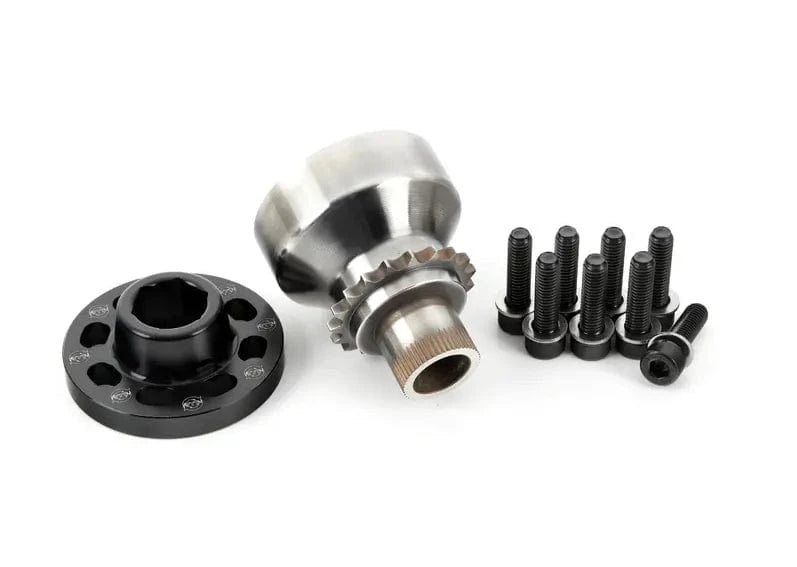

4. Complete Kit: Hub + OEM Bolt, OEM Oil Pump Sprocket, OEM Oil Sprocket Retainer, + VTT Crank Bolt Capture

Installation Requirements:

We strongly recommend this system be installed by a qualified technician or professional shop.
Factory timing tools are mandatory—improper installation can result in engine damage.

Important Notes & Disclaimer:

• No-slip guarantee is valid only when installed by a Certified VTT Install Center.

• VTT is not responsible for damage resulting from improper installation or misuse.

• This product is sold without warranty and is intended for race use only.

• The included installation guide is to assist experienced professionals and differs from factory procedure.

• VTT does not warranty OEM components included in the kit. However, we will assist in pursuing a replacement with BMW if needed.

• The VTT CBC is designed to work with the factory crank bolt only and is not compatible with aftermarket crank bolts.

Protect your engine. Eliminate crank hub slip. Trust the proven solution—VTT Spline Lock.
